How to Build a Ski/Snowboard Core Profiler

Core Profiling Equipment for Ski Building

Shaping ski cores accurately is one of the most important (and challenging) steps in building custom skis. A well-profiled core ensures consistent flex, strength, and weight. There are a few different ways to remove material and taper the ski core ranging from simple DIY jigs to full CNC machines.

The Core Profile varies (typically between 2mm thick at the tip and tail to 10mm in the middle underfoot)

This page will focus on using a CNC router for core profiling, but we’ll also cover alternative approaches like router sleds and planer jigs.

Core Profiling Options

  • CNC Router (Shown Below)
    • Fully programmable for different ski sizes and flex patterns.
    • Cuts complex tapers and repeatable profiles with minimal setup.
    • Best for builders who want precision and flexibility.
  • Router Sleds
    • A simple jig that slides a hand-held router back and forth over the core.
    • Adjustable riser blocks set the taper thickness.
    • Affordable and effective, but more manual setup and less repeatable.
  • Planer Jigs
    • A jig used with a thickness planer to create tapered profiles.
    • Space and cost efficient because you will use the planer during other steps in the process.
    • Good choice for small shops without CNC access.

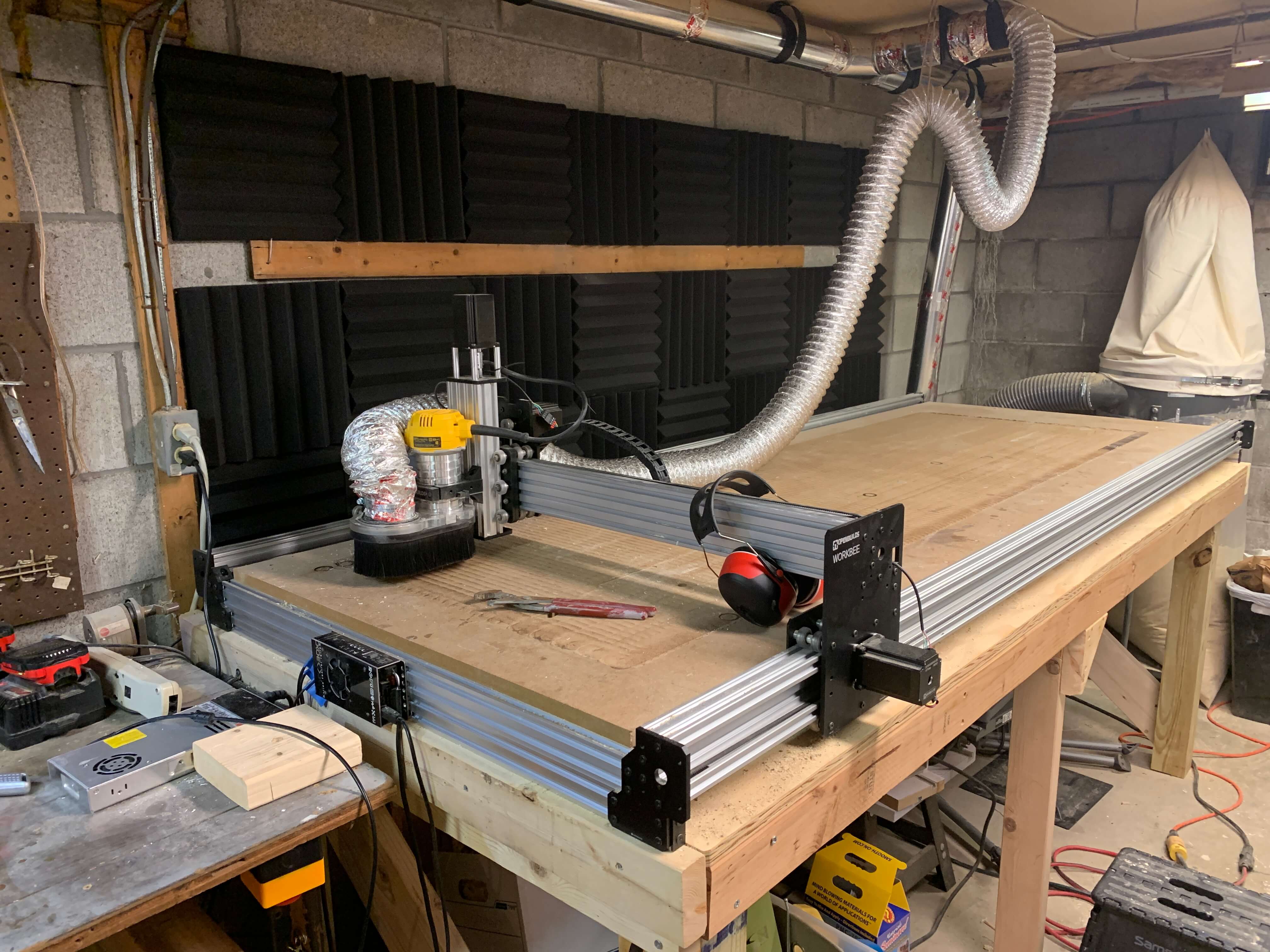

CNC Core Profiler

The CNC machine I use at Thunderbird Snowsports handles hardwoods like maple and ash with reasonable accuracy and speed, which are common in ski cores. Here are its main specs:

  • Variable Speed Dewalt Router (Trim Router)
    • Reliable and affordable spindle option.
    • Plenty of power for cutting hardwoods used in ski cores.
    • Router bits are widely available and easy to change.
  • Aluminum Extrusion Frame
    • Lightweight but rigid enough for woodcutting.
    • Easy to expand and modify if needed.
  • Timing Belt Motion System
    • Uses belts instead of lead screws for motion.
    • Lower cost and acceptable accuracy on X and Y axis. (Recommend lead screw for Z-axis)
  • GRBL Controller
    • Open-source control system.
    • Runs off an Arduino and is easy to interface with software like Universal Gcode Sender.
    • Simple, reliable, and well-supported in the maker community.

This setup balances affordability with capability, making it an excellent choice for small-scale ski manufacturing.
